Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Factory Lead Time

16 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

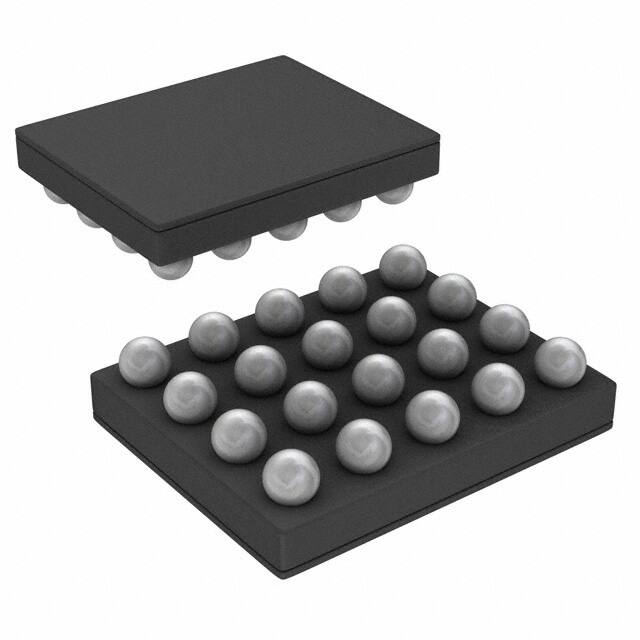

Package / Case

20-UFBGA

Number of Pins

20

Power - Output (Max)

1.25W

Current - Supply (Nom)

7.3mA

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

Series

Boomer®

JESD-609 Code

e1

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

20

ECCN Code

EAR99

Type

Class AB

Terminal Finish

Tin/Silver/Copper (Sn/Ag/Cu)

Voltage - Supply

2.7V~5.5V

Terminal Position

BOTTOM

Terminal Form

BALL

Peak Reflow Temperature (Cel)

260

Number of Functions

3

Terminal Pitch

0.5mm

Base Part Number

LM49200

Output Type

2-Channel (Stereo) with Stereo Headphones

Power Supplies

3.3V

Number of Channels

4

Output Power

1.25W

Common Mode Rejection Ratio

60 dB

Supply Type

Dual

Power Supply Rejection Ratio (PSRR)

90dB

Max Dual Supply Voltage

5.5V

Dual Supply Voltage

5V

Max Output Power x Channels @ Load

1.25W x 2 @ 8 Ω; 38mW x 2 @ 32 Ω

Voltage - Supply (Min)

2.7V

Features

Depop, Differential Inputs, I2C, Shutdown, Thermal Protection, Volume Control

Channel Separation

80 dB

Height

675μm

Length

2.5mm

Width

2.3mm

Thickness

675μm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
